Szczegóły Produktu:
|
| Częstotliwość robocza: | Wielokrotność | Wrażliwość: | Inny |
|---|---|---|---|
| Typ: | dla narzędzi do badania wody | Użytkownik: | Dorośli |
| Indywidualne wsparcie: | OEM | Ocena IP: | Nie dotyczy |
| Tworzywo: | Nie dotyczy | Wyszukaj średnicę cewki: | Nie dotyczy |
| Gwarancja: | 2 lata | Nr modelu: | Detektor wód gruntowych PQWT-TC300 |
| Pomiar głębokości: | Detektor wody o zasięgu 300 metrów | Zakres automatycznej konwersji instrumentu: | 0MV-2000MV |
| Dokładność pomiaru: | 0,01 MV | Częstotliwość pomiaru: | Pojedynczy pasek, potrójny pasek, wielokrotność |
| Rozmiar LCD: | 7-calowy ekran dotykowy HD | Konwersja A/D.: | 12-bitowe 1MSP |
| Impedancja wejściowa: | 10MΩ | Zasilanie: | Wbudowana bateria 4000 mAh |
| Oficjalna strona internetowa: | www.pqwtcs.com | ||
| Podkreślić: | PQWT TC300 water detector 300m range,portable water detector high accuracy,PQWT water detector with warranty |
||
300m Long Range High Accuracy Portable water Detector water detection
We have water detector for the different depth 100/150/300/500/600/1200/1500m.
If you need more product information, please contact wechat/whatsapp 00 8618817121520
![]()

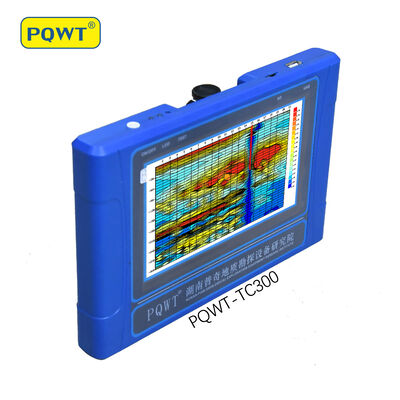

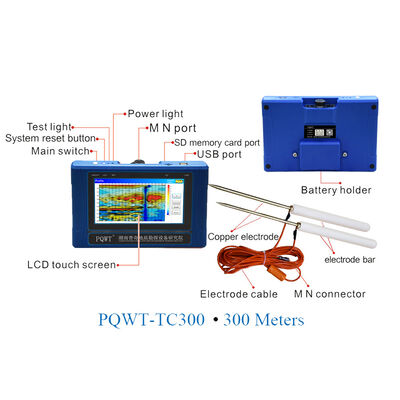

PQWT-TC300.300M deep underground water detector
The Instrument called as (Natural Electric Field Frequency Selection System) geophysical instrument, shortly known as frequency system.
Instrument working on the principle of electrical difference of natural earth magnetic field, the several different frequencies of electromagnetic field changes is the law to study the underground field material changes to solve the Geological problems.
The measurement data is Self-potential, and the unit is millivolt.
|
Model |
PQWT-TC300 |
|
Depth |
300 Meters |
|
Frequency |
Single, Triple, 40frequency |
|
Channel |
6 |
|
System |
PQWT |
|
LCD |
Industrial 7-inch HD touchscreen |
|
Units of Measurement |
Vs(mV) |
|
Measurement Range |
0mV-1500mV |
|
Stand-by Time |
8-10 hours |
|
Power Supply |
Battery Model #26650; 3.7V 4000mAh Rechargeable lithium battery |
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
Is it difficult to operate and make the graph?
The instrument is easy to operate, you can find the share how-to video on Youtube
(URL: http://www.pqwtcs.com/NewsDetail.aspx?nid=3643&classid=273)
, and we will send you the detailed operation manual via email. If you have some basis of computer operating, generally it only needs 2hour to manage it.
300m Long Range High Accuracy Portable Gold Mine Detector water detection
![]()
